Description

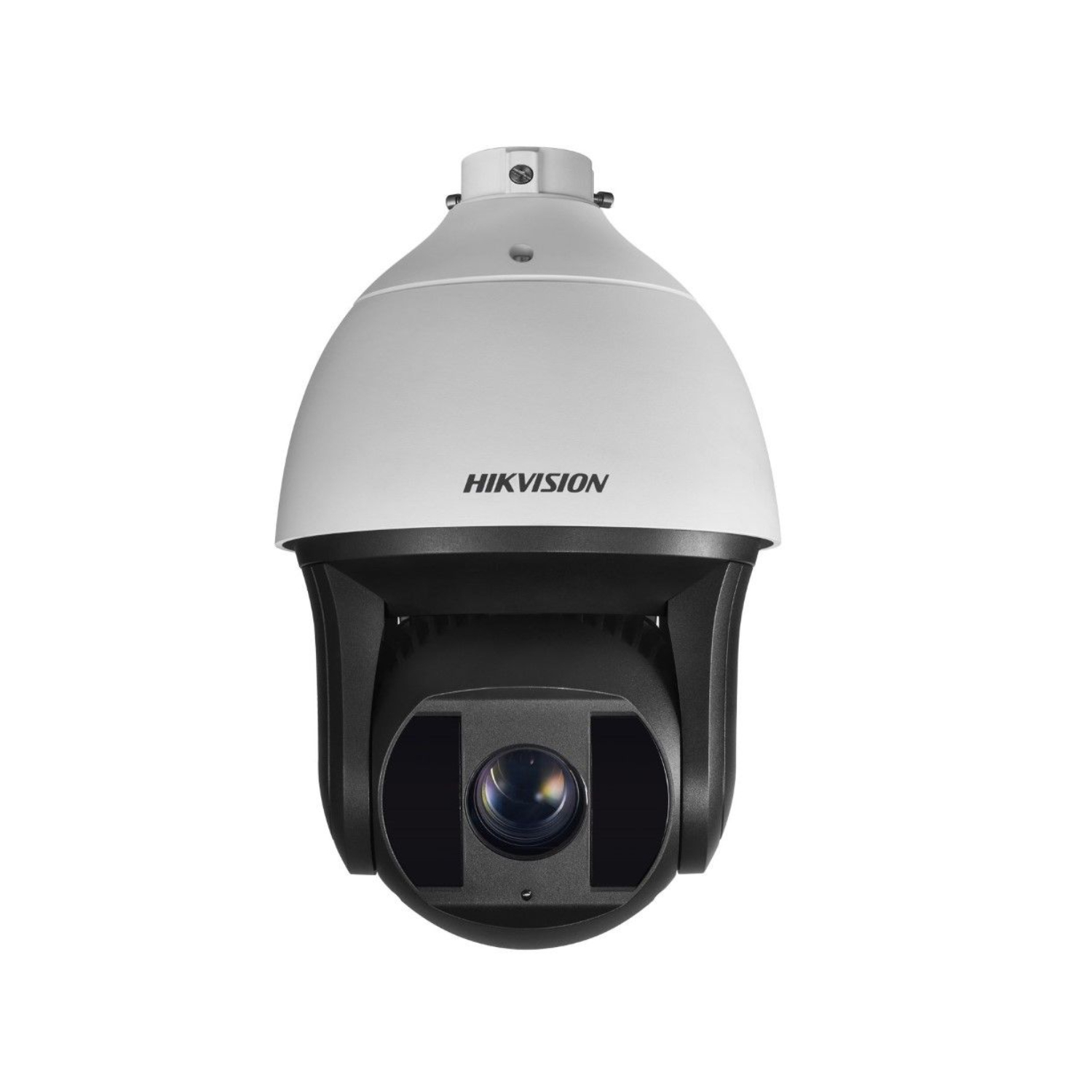

Part of Hikvision’s Pro series PTZs, the HIK-2DF8425IXELW is an outdoor Darkfighter PTZ with 25x optical zoom and infrared for range visibility at night, up to 200m. The Hikvision Pro series features cutting edge technologies such as Rapid Focus and Auto-tracking 2.0 and can capture high quality 4-megapixel images efficiently with H.265 or H.265+ compression technology. This PTZ is powered by Hikvision’s industry leading Darkfighter technology which can capture crystal clear colour image in ultra-low light conditions. With a 360-degree endless pan range and a -20 to 90-degree tilt range, this versatile and full featured PTZ dome camera makes it ideal to monitor expansive areas and allows the user to focus on specific details for further forensic needs.
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8″ progressive scan CMOS | |
| Effective Pixels: | 2560(H)×1440(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Rapid Focus: | Yes | |
| Lens | ||
|---|---|---|
| Focal Length: | 5.7 mm to 142.5 mm, 25× Optical | |
| Zoom Speed: | Approx. 3.7 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 51.1° to 2.5° (wide-tele) Vertical field of view: 31.3° to 1.4° (wide-tele) Diagonal field of view: 58.0° to 2.8° (wide-tele) |
|
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.5~F3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s | |
| Tilt Range: | -20°~90°(Auto Flip) | |
| Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s | |
| Proportional Zoom: | Yes | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Smart-tracking: | Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking | |
| Wiper: | Optional | |
| Infrared | ||
|---|---|---|
| Smart IR: | Yes | |
| IR Distance: | 200m | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Alarm Linkage: | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Main Stream: | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Third Stream: | 50Hz: 25fps(704×576, 640×480, 352×288); 60Hz: 30fps(704×480, 640×480, 352×240) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| ROI encoding: | Eight fixed region for each stream | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Audio Mode: | OFF/Audio input/Audio output | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR | |
| User/Host: | Up to 32 users, 3 levels: Administrator, Operator and User | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Client GUI | ||
|---|---|---|
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Web Browser: | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) | |
| Power Consumption: | 24 V, 3.0 A, 50/60Hz, AC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater) Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) |
|
| Working Temperature/Humidity: | -40°C to 70°C (-40°F to 158°F) | |
| Protection Level: | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″) | |
| Weight (approx.): | 8kg (approx.17.64lb) | |
