Description

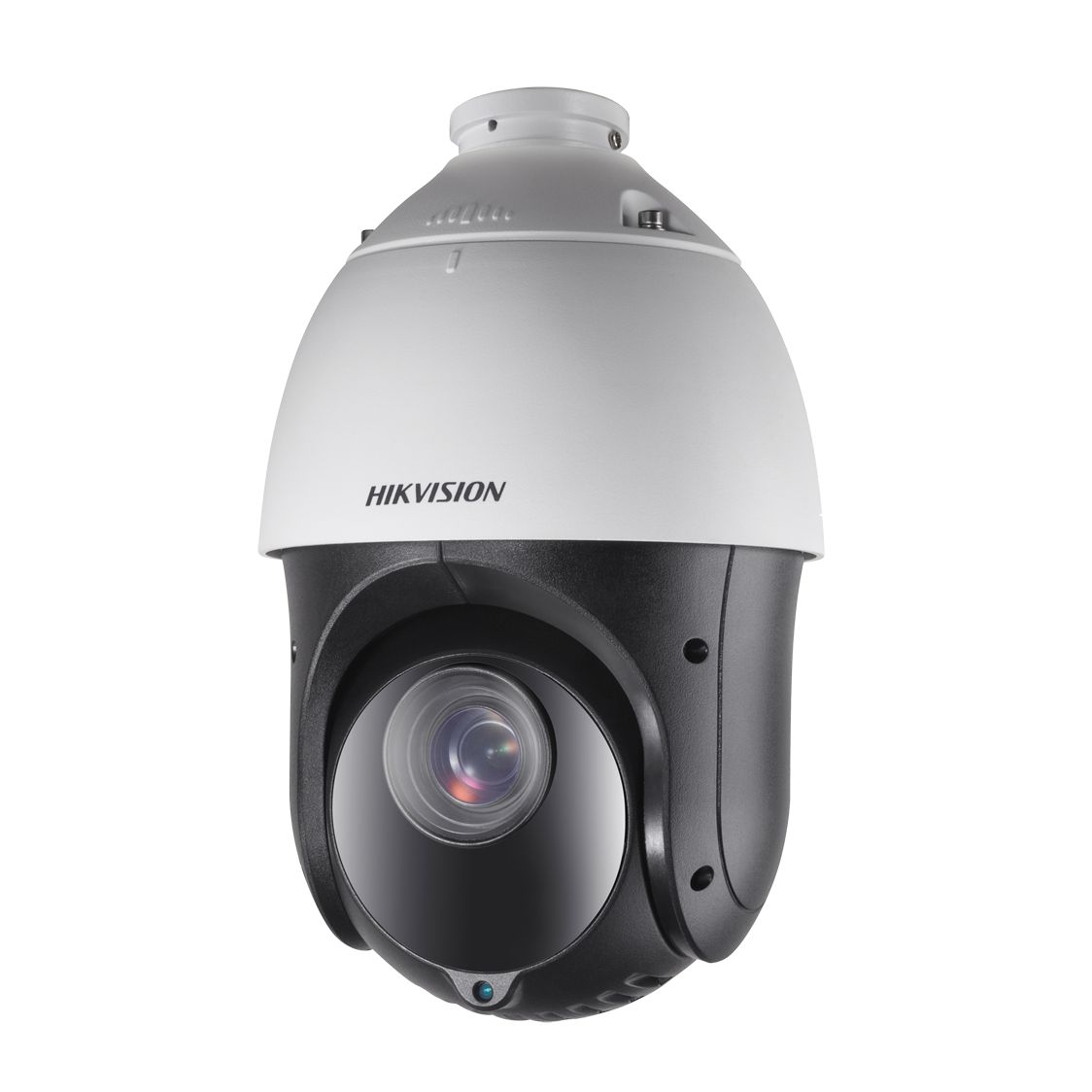

Part of Hikvision’s E series PTZ range, the DS-2DE4425IW-DE is an outdoor 4-megapixel mini PTZ with 25x optical zoom and infrared for visibility at night, up to 100m. The Hikvision E series combines a host of features in a relatively compact size PTZ. It can capture high quality images efficiently with H.265 or H.265+ compression technology. With a 360-degree endless pan range and a -15 to 90-degree tilt range, this versatile and affordable PTZ dome camera makes it ideal to monitor expansive areas and allows the user to focus on specific details for further forensic needs.
Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 100m IR range ensures safety at night
- Water and dust resistant (IP66)
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× optical zoom | |
| Zoom Speed: | Approx. 3.6 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele) |
|
| Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range: | F1.6 to F3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 100m | |
| IR irradiation angle: | Adjustable by zoom | |
| Input & Output | ||
|---|---|---|
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Ethernet: | 1 RJ45 self-adaptive 10 M/100 M Ethernet Interface | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| ROI encoding: | Main stream, sub-stream, and third stream respectively support four fixed areas. | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR | |
| User/Host: | Up to 32 users, 3 levels: Administrator, Operator and User | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Client GUI | ||
|---|---|---|
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Web Browser: | IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ | |
| General | ||
|---|---|---|
| Language: | 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) | |
| Power Consumption: | 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4 Max.18 W, including max.7W for IR |
|
| Working Temperature/Humidity: | -30°C to 65°C (-22°F to 149°F) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Material: | ADC 12, PC, PC+10%GF | |
| Dimensions: | Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) | |
| Weight (approx.): | Approx. 2 kg (4.41 lb) | |
