Sale!

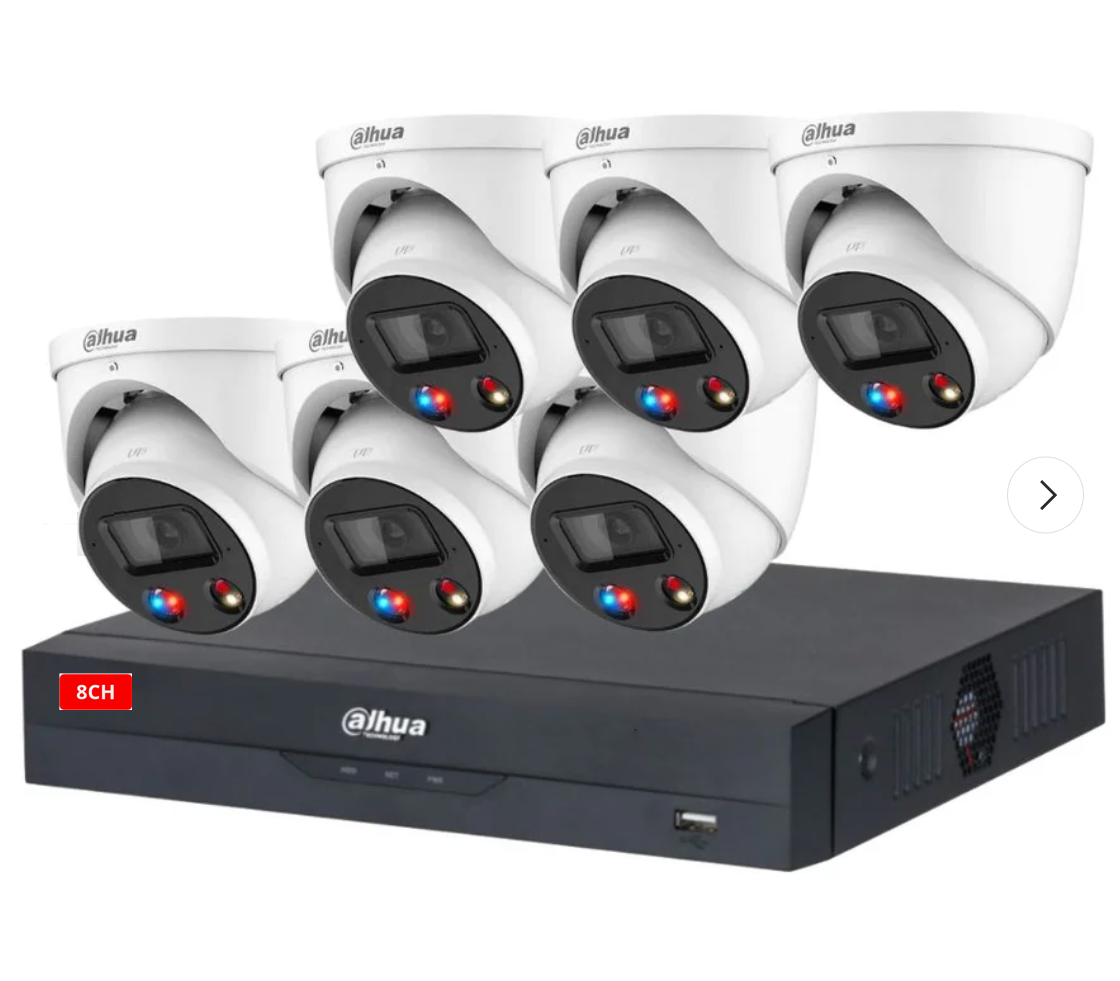

Dahua 6 x 8MP TIOC Active Deterrance Turret Kit with 8CH NVR Wizsense

$2,144.00

inc GST +3 Year Warranty & Support



Contact Us
SKU: 009404-1-1-1-1-20-1-2-5-1-3-3-2-1-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-2-2-1-2-1-1 Categories: , ,

Description

Dahua 8ch 6 x 8MP Turret Kit | TiOC 3.0 With SMD 4.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0

DH-IPC-HDW3849H-AS-PV-ANZ-S2

Dahua 8ch 8MP Turret Kit includes:

1 x DHI-NVR4108HS-8P-AI/ANZ Wizsense NVR,

6 x TIOC Advanced 3.0 with SMD4.0 DH-IPC-HDW3849H-AS-PV-ANZ-S2

NO HDD Installed.

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m

( 119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm 107.6 m (353.02 ft) 43.0 m

( 141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.43 ft)

Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)

Dahua Warranty

3-Year Manufacturer Warranty

All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.

Note: Disk drives are limited to a 3-year warranty.

Our warranty is limited to the replacement of faulty items or parts
and does not include damage caused by incorrect fitting of parts or accessories.

(a) Australian Consumer Law (ACL)

Certain legislation, including the Australian Consumer Law (ACL) in the
Competition and Consumer Act 2010 (Cth), and similar consumer protection
laws and regulations may confer you with rights, warranties, guarantees, and remedies
relating to the provision of goods or services to you by us via the Site which cannot
be excluded, restricted, or modified. Our liability is governed solely by the ACL and
these Terms.

(b) Goods

If you are a consumer as defined in the ACL, the following notice applies to you:

“Our goods come with warranties and guarantees that cannot be excluded under the
Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or
a refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.”

(c) Our Warranties

To the extent permitted by law, we exclude all express and implied warranties,
and all material and work is provided to you without warranties of any kind,
either express or implied. We expressly disclaim all warranties including but
not limited to implied warranties of merchantability and fitness for a particular
purpose.

(d) Manufacturer Warranties

Certain products, including particular models of IP security cameras and DVR/NVR
equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is
in addition to but may overlap with any rights and remedies you may have under
applicable law, including any Consumer Guarantees. If you are not considered a
“consumer” within the meaning of the ACL, the manufacturer’s warranty may be your
sole remedy. Many manufacturers’ warranties do not apply in a business or commercial
setting. Please contact the manufacturer if you would like to make a claim under
the manufacturer’s warranty.

(e) Repair, Replacement, or a Refund

If you wish to seek repair, replacement, or a refund for a product, please
contact us and we will explain the requirements to you. This may include you
providing evidence of the faulty product to us.

(f) Refund

You are not entitled to a refund for change of mind. If you are entitled to a
refund, we will only provide it once evidence of the faulty product is received
by us, or once we have received the product at our warehouse and inspected it
to assess whether it is eligible for a refund under these Terms. Any refund we
make will be by the same payment method used to purchase the product.

(g) Installed Products

Subject to this clause, we will not accept for return any product that has been
used, connected, installed, attempted to be connected or installed, or if your
product is custom-made or is a special buy product.

(h) Packaging

You must adequately package any product you are returning for our collection
to ensure that it is not damaged during return delivery to our warehouse. You
are also responsible for arranging the return delivery and the costs involved.

(i) Duty of Care

You have a duty of care for the product while it is in your possession. If
you damage products and then subsequently return them, you may be liable to pay
to repair the product to its original condition. In these circumstances, where
a repair is not economically viable, no refund will be made.
