Product Overview

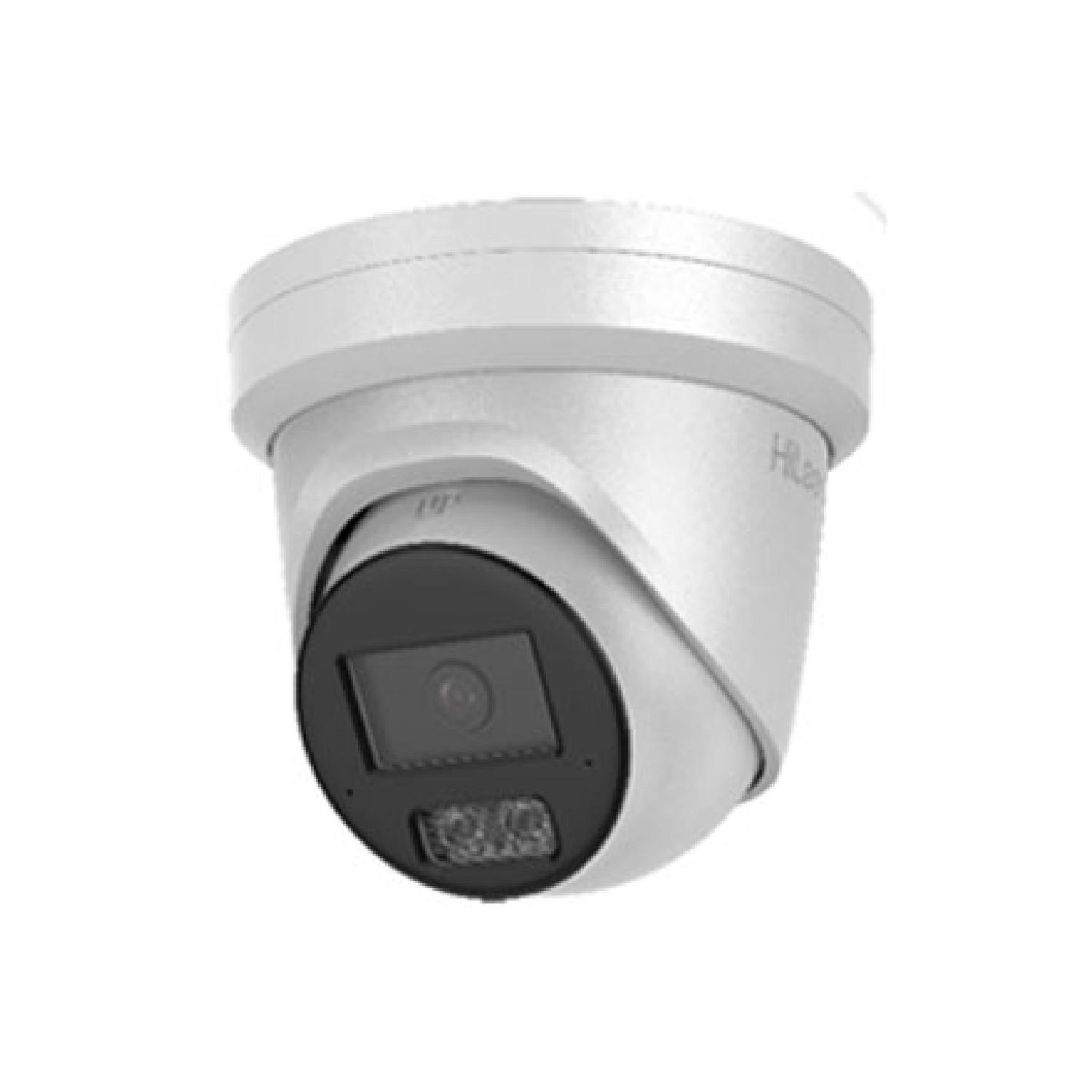

The HiLook IPC-T561H-MU is a powerful 6MP fixed turret camera engineered for continuous full-colour video surveillance. Purpose-built without infrared, it uses a built-in warm white light to maintain rich, vibrant visuals—day and night. Ideal for users who need accurate colour detail for people, vehicles, and environments, this model delivers intelligent detection, audio capture, and weatherproof durability in a compact form factor.
Key Capabilities
24/7 Full-Colour Imaging
Equipped with a 1/1.8″ progressive scan CMOS sensor and F1.0 large aperture, this camera captures vibrant colour even in low-light conditions. Its supplemental warm LED activates at night, replacing traditional black-and-white IR with crystal-clear colour footage.
Infrared-Free Recording
By eliminating IR lighting, this camera avoids glare and light reflection issues, producing more natural video that preserves accurate colours for skin tones, vehicles, and environments—especially helpful for identifying subjects.
Human and Vehicle Classification
Built-in AI algorithms distinguish between people and vehicles, reducing false alarms from shadows, animals, or leaves and delivering smarter, more efficient monitoring results.
Dual Built-In Microphones
Two integrated microphones capture ambient sound and voice with clarity, offering added situational awareness for playback and real-time monitoring.
IP67 Outdoor Protection
This camera is IP67-rated against dust and water ingress, ensuring dependable performance in harsh outdoor environments, including rain, snow, and wind.
Key Features
- 6MP high-resolution turret camera with wide field of view
- Full-colour night vision using warm supplemental lighting
- No IR LEDs—avoids glare and preserves colour accuracy
- AI-based human and vehicle classification to minimise false alerts
- Built-in dual microphones for clear audio capture
- IP67 weather-resistant for outdoor installation
- H.265+ compression for reduced bandwidth and storage
Specifications Summary
- Lens Type: Fixed
- Focal Length and FOV: 2.8mm (~102° horizontal) or 4mm (~85° horizontal)
- DORI Distance: Detect: ~55m, Recognise: ~22m, Identify: ~11m (approximate)
- Audio Type: Dual built-in microphones
- Night Vision Range (IR): N/A – uses supplemental white light
Technical Specifications
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Resolution: 3200 × 1800 (6MP)
- Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with supplemental light
- Lens Options: 2.8mm or 4.0mm fixed lens
- Shutter Speed: 1 s to 1/100,000 s
- Audio: Built-in dual microphones
- Day/Night Mode: Full-colour only (no IR)
- Ingress Protection: IP67
- Video Compression: H.265+, H.265, H.264+, H.264
Ideal Use Cases
- Retail Stores – Capture product and customer details with colour accuracy.
- Residential Entrances – Identify faces, clothing, and car colours at night.
- Parking Areas – Record plates and vehicle types in full colour, even in darkness.
- Warehouses and Lobbies – Maintain security with audio and visual coverage in dim lighting.
Choosing Between the 2.8mm and 4mm Lens
The IPC-T561H-MU is available in two fixed lens options—2.8mm and 4mm—allowing you to tailor the field of view to your application:
| Lens | Field of View | Best For | Notes |
|---|---|---|---|
| 2.8mm | ~102° horizontal | Wide coverage areas | Ideal for front yards, open-plan shops, or wider spaces needing broad visibility |
| 4.0mm | ~85° horizontal | Focused coverage zones | Recommended for entrances, hallways, and narrow lanes requiring extra detail at distance |
Tip:
Choose 2.8mm for wider scenes close to the camera.
Choose 4mm when you want a tighter view with greater distance detail.
Specifications
Full Specifications Table
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 (6MP) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1 s to 1/100,000 s |
| Day/Night | IR cut filter (full-colour only) |
| Lens Type | Fixed focal lens |
| Lens Options | 2.8mm or 4mm |
| FOV (2.8mm) | Horizontal: 108.8°, Vertical: 56.4°, Diagonal: 134.3° |
| FOV (4.0mm) | Horizontal: 93.3°, Vertical: 47.2°, Diagonal: 114.2° |
| Aperture | F1.0 |
| Depth of Field | 2.8mm: 3.3 m to ∞; 4mm: 3.8 m to ∞ |
| Supplement Light | White light, up to 30 m |
| DORI (2.8mm) | Detect: 89 m, Observe: 35 m, Recognise: 17 m, Identify: 8 m |
| DORI (4.0mm) | Detect: 109 m, Observe: 43 m, Recognise: 21 m, Identify: 10 m |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG (sub-stream) |
| Video Resolution | 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360 |
| Frame Rate | Main stream: 25 fps; Sub-stream: 25 fps; Third-stream: 10 fps |
| Bit Rate | 32 Kbps to 16 Mbps |
| Audio Input | Mono sound with built-in dual microphones |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 8 Kbps to 320 Kbps (varies by codec) |
| Audio Sampling Rate | 8/16/32/48 kHz |
| Noise Filtering | Yes |
| Smart Features | Human/Vehicle classification, Face Capture, Motion Detection, Scene Change, Line Crossing, Intrusion, Region Entrance/Exit |
| WDR | 130 dB |
| 3D DNR | Yes |
| Image Enhancements | BLC, HLC, EIS, Defog, Distortion Correction |
| Privacy Mask | 4 polygonal areas |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, TLS, SNMP, WebSocket, SFTP, etc. |
| API Support | ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
| Simultaneous Live Views | Up to 6 channels |
| Web Access | Chrome 80+, Firefox 80+, Edge 89+ (no plugin required) |
| On-board Storage | MicroSD/SDHC/SDXC, up to 512 GB |
| Power Supply | 12 VDC ± 25%, max. 8.5 W; PoE (802.3af, Class 3, max. 11 W) |
| Ingress Protection | IP67 |
| Operating Conditions | -30°C to 60°C, 95% humidity or less (non-condensing) |
| Material | Metal (cover and body) |
| Dimensions | Ø 138.3 mm × 115.4 mm |
| Weight | Approx. 750 g (camera only), 1140 g (with packaging) |
