Description

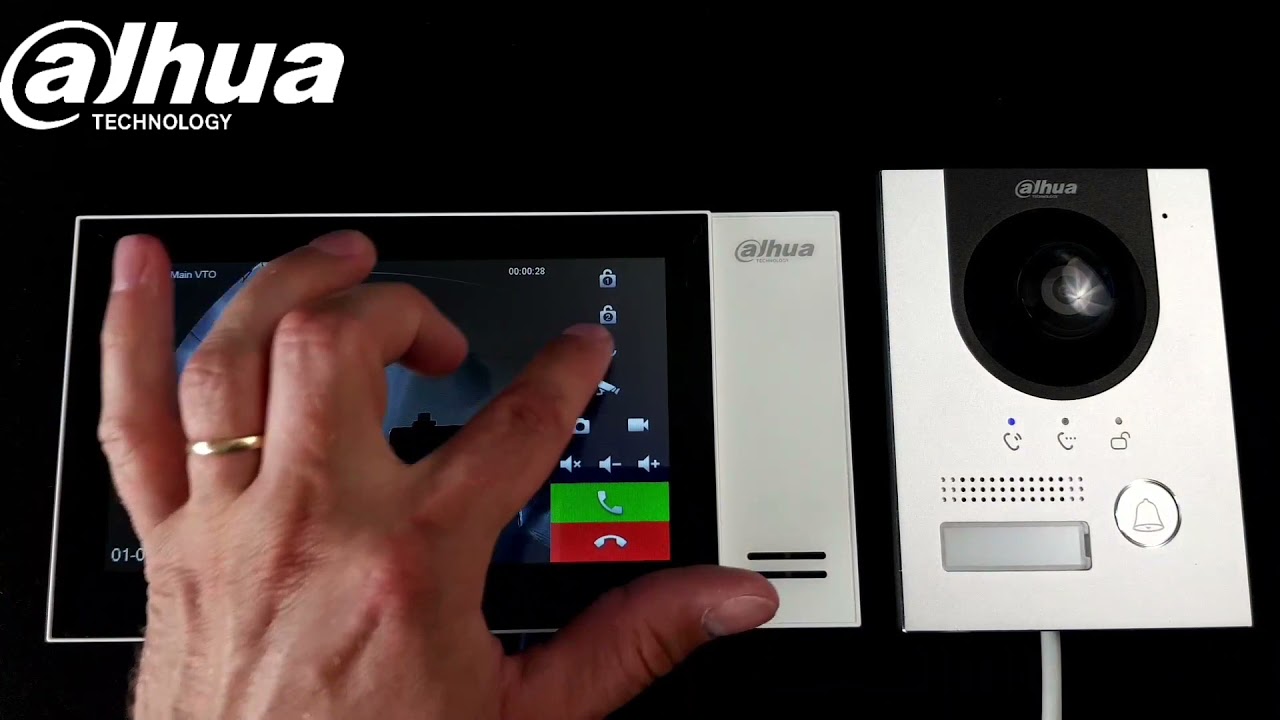

Dahua 7inch Touch Screen IP Intercom Kit
Dahua IP Villa Intercom Kit Surface Mount
KTP01(S)
- 2MP CMOS camera
- 7-inch TFT screen
- Mechanical push button
- Night vision & voice indicator
- Aluminum alloy plate
- Support Micro SD, maximum memory capacity 32G
- Support standard PoE
- Alarm integration
- Surface mounted and flush mounted options*
- IK07&IP65
WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the Monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the door station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.

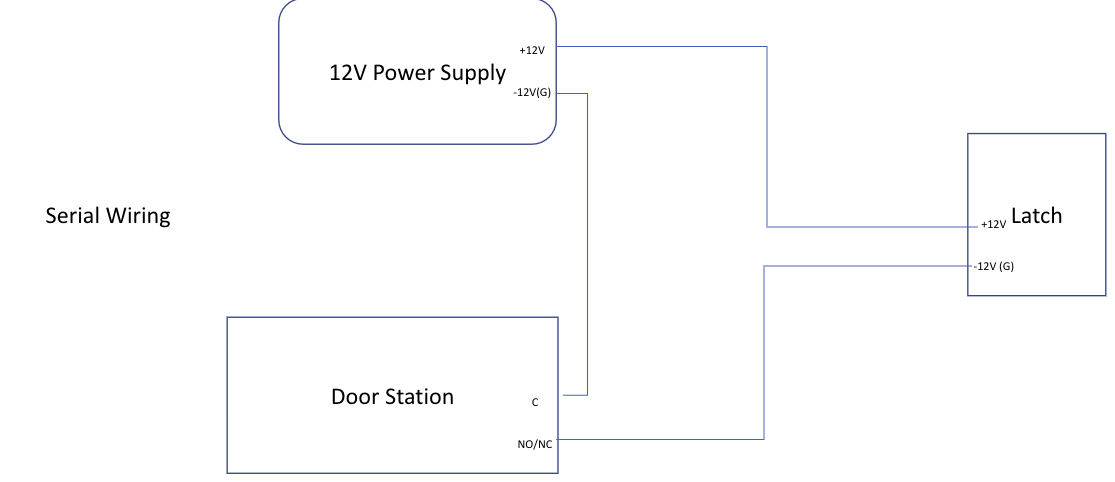

How to cable strike:
This is assuming the electronic gate unlock with 12V power in. Some of the gates do not need any power as it is powered by a motor. In that case, we only need to connect the NO or NC and Com to the relevant connection in the gate. For the gate that has a motor, do not use 12V as it may damage the connection ports in the motor of the gate.If the monitor gives “Lock 1 failed” error intermittently, go to web browser of the VTO > Local Setting > Access Control > Local
In there, put the unlock responding interval and unlock period as the same.
Unlock responding interval: It is the time, the user has to wait before unlocking the door again after you have already pressed the unlock button
Unlock period: It is the unlock time of the latch
1 x Dahua DHI-VTO2202F-P 2MP Villa Outdoor Station
1 x Dahua DHI-VTH2621GW-P 7inch Touch Screen IP Indoor Monitor
1 x Dahua DH-PFS3005-4ET Poe Switch (if OOS, will replace with Uniarch 8Port)
1 x Dahua DH-AC-VTM115 Surface mount bracket for VTO2202F-P
