Description

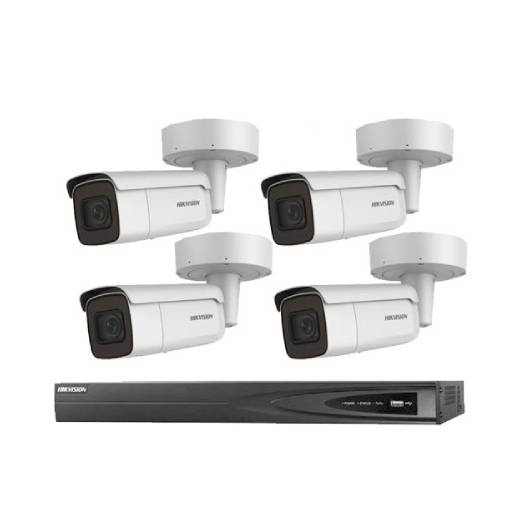

4 x 8 MP Hikvision Outdoor Motorised VF Bullets
Code/SKU: HIK-2CD2685G11-IZS or DS-2CD2685G1-IZS
Quick Specs: H.265+, IR, IO, WDR, IP67, 2.8-12mm
Lens Options: 2.8mm – 12mm IR Range: 30m
1 x 4 CH Hikvision PoE NVR
Code/SKU: HIK-7604NI-I1-4P or DS-7604NI-I1-4P (Supports latest Gui 4.0 & Acusense cams)
Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA / HDMI, 1 HDD Bay + 3TB
Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2685G1IZS or DS-2CD2685G1-IZS is a vandal proof, outdoor and motorised varifocal IR bullet camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Key Features:
-
- 1/2.5″ progressive scan CMOS
- 8MP resolution (3840 x 2160) at 20fps
- 2.8 to 12 mm motorised lens (HVOF – 115 degrees to 35 dgrees)
- H.265, H.265+, H.264+, H.264
- Third stream
- 120dB wide dynamic range (WDR)
- Backlight compensation, 3D digital noise reduction
- Up to 30m infrared
- Audio/alarm IO
- IP67, IK10
- Line crossing, intrusion, object abandoned, object removed and face detection
- Supports on-board storage, up to 128 GB
- 802.3af PoE or 12VDC
There are limitations with the NVR which would prevent it from recording 24/7 resulting in missed recordings. Suggest upgrading to an 8CH NVR if you plan to use it on a 24/7 basis.
3 Year Manufacturer Warranty
All Hikvision IP cameras and recording device (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
(Note disk drives limited to 1 one year)
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories.
Consumer Law, Return, Refund and Exchange Policy:
(a) ACL: Certain legislation including the Australian Consumer Law (ACL) in the Consumer and Competition Act 2010 (Cth), and similar consumer protection laws and regulations may confer you with rights, warranties, guarantees and remedies relating to the provision of goods or services to you by us via the Site which cannot be excluded, restricted or modified. Our liability is governed solely by the ACL and these Terms.
(b) Goods: If you are a consumer as defined in the ACL, the following notice applies to you: “Our goods come with warranties and guarantees that cannot be excluded under the Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure
(c) Our warranties: To the extent permitted by law, we exclude all express and implied warranties, and all material and work is provided to you without warranties of any kind, either express or implied. We expressly disclaim all warranties including but not limited to implied warranties of merchantability and fitness for a particular purpose.
(d) Manufacturer warranties: Certain products, including particular models of IP security cameras and DVR/NVR equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is in addition to but may overlap with any rights and remedies you may have under applicable law, including any Consumer Guarantees. If you are not considered a “consumer” within the meaning of the ACL, the manufacturer’s warranty may be your sole remedy. You should check the manufacturer’s warranty, as many manufacturers’ warranties do not apply in a business or commercial setting. Please contact the manufacturer if you would like to make a claim under the manufacturer’s warranty.
(e) Repair, replacement or a refund: If you wish to seek repair, replacement or a refund for a product, please contact us and we will explain the requirements to you. This may include you providing evidence of the faulty product to us.
(f) Refund: You are not entitled to a refund for change of mind. If you are entitled to a refund, we will only give you the refund once evidence of faulty product is received by us, or we have received the product at our warehouse and inspected it and assessed whether it is eligible for a refund under these Terms. Any refund we make will be by the same payment method used to purchase the product.
(g) Installed: Subject to this clause, we will not accept for return any product that has been used, connected, installed, attempted to be connected or installed, or if your product is custom-made or is a special buy product.
(h) Packaging: You must adequately package any product you are returning for our collection to ensure that it is not damaged during return delivery to our warehouse. You are also responsible for arranging the return delivery and the costs involved.
(i) Duty of care: You have a duty of care for the product while it is in your possession. If you damage products, then subsequently return the products, you may be liable to pay to repair the product to its original condition. In these circumstances, where a repair is not economically viable, no refund will be made.
| Camera | ||
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 to 12 mm |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Focus: | | | Motorized VF lens(-Z model) |
| Compression Standard | ||
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio bit rate: | | | 32 to 128kbps |
| Triple Streams: | | | Yes |
| Image | ||
| Frame Rate: | | | 50Hz: 20 fps (3840 × 2160),
25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720) 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Main Stream: | | | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: | | | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Image Enhancement: | | | BLC/3D DNR |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast,
Sharpness adjustable by client software or web browser |
| Regional Cropping: | | | Support |
| ROI: | | | Support 1 fixed region for each stream, and face dynamic tracking |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | One-key reset, flash-prevention, dual streams, heartbeat,
mirror, password protection, privacy |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| Reset Button: | | | Yes |
| Audio | ||
| Environment Noise Filtering: | | | Support |
| Smart Feature-set | ||
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage,
purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region,
such as the exhibits on display. |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Consumption: | | | 12 VDC, 1.5A, max. 17W PoE (802.3at, 42.5V to 57V), 0.1A to 0.5A, max. 19W |
| Weather Proof: | | | IP67 |
| Dimensions: | | | Φ144.13×332.73 mm (Φ5.67″× 13.10″) |
| Weight: | | | Camera: 1893 g (4.17 lb.) |
